duct-mount

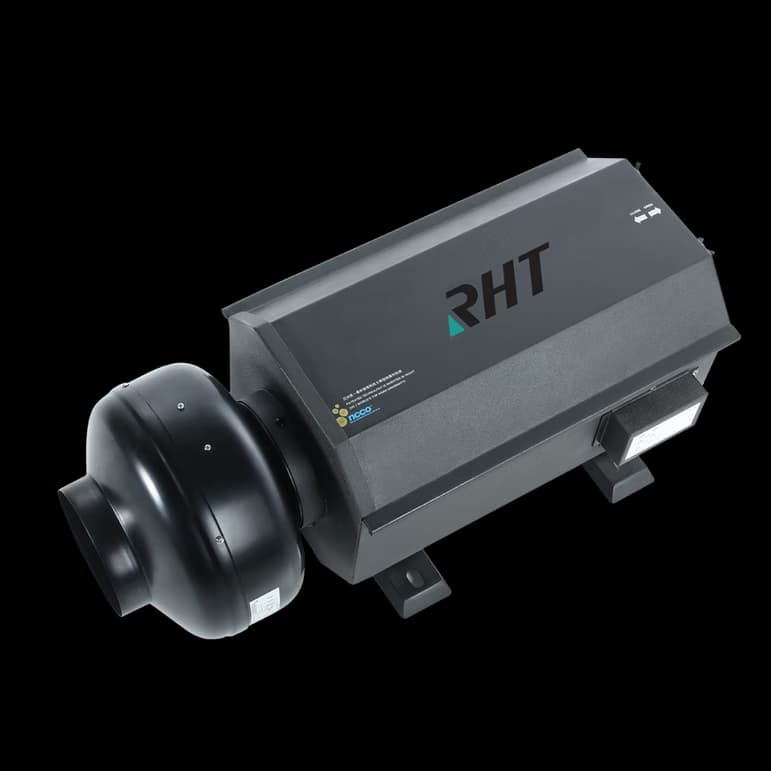

RH-220

Fresh Air / Duct Mount NCCO Air Treatment Unit — mobile or duct-attachable

RH-220
Technical Specifications
Power Supply110–240V~ 50–60Hz
Power Consumption6 W (Lowest) – 23 W (Medium) – 40 W (Highest)
Airflow Volume (CMH)70 m³/hr (Lowest) – 160 m³/hr (Medium) – 230 m³/hr (Highest)
Fan Specification285 m³/hr (168 CFM)
Noise Level40 dB (Lowest) – 52 dB (Medium) – 62 dB (Highest)
Applicable Area20–60 m²
Product Dimension638 × 303 × 270 mm
NCCO Reactor Dimension154 × 154 × 253 mm
Net Weight12.5 kg
Gross Weight14.1 kg
InstallationMobile / Duct mount
View Data Sheet (PDF)
Key Features
Available voltage 110–240V~ 50–60Hz
Multiple speed modes
Includes 3-stage treatment system
Typically used for room sizes of 20–60 m²
Longest filter life in industry
Mobile unit — can also attach to ventilation ducting
Best For
Hospitals & ClinicsAnimal HospitalsPharmaceutical IndustryCare HomesPrinting IndustryAirports & Railway StationsMalls & StadiumsHotels & Offices
Product Details

Inside the RH-220

Detailed breakdown of components, certifications, and installation options.

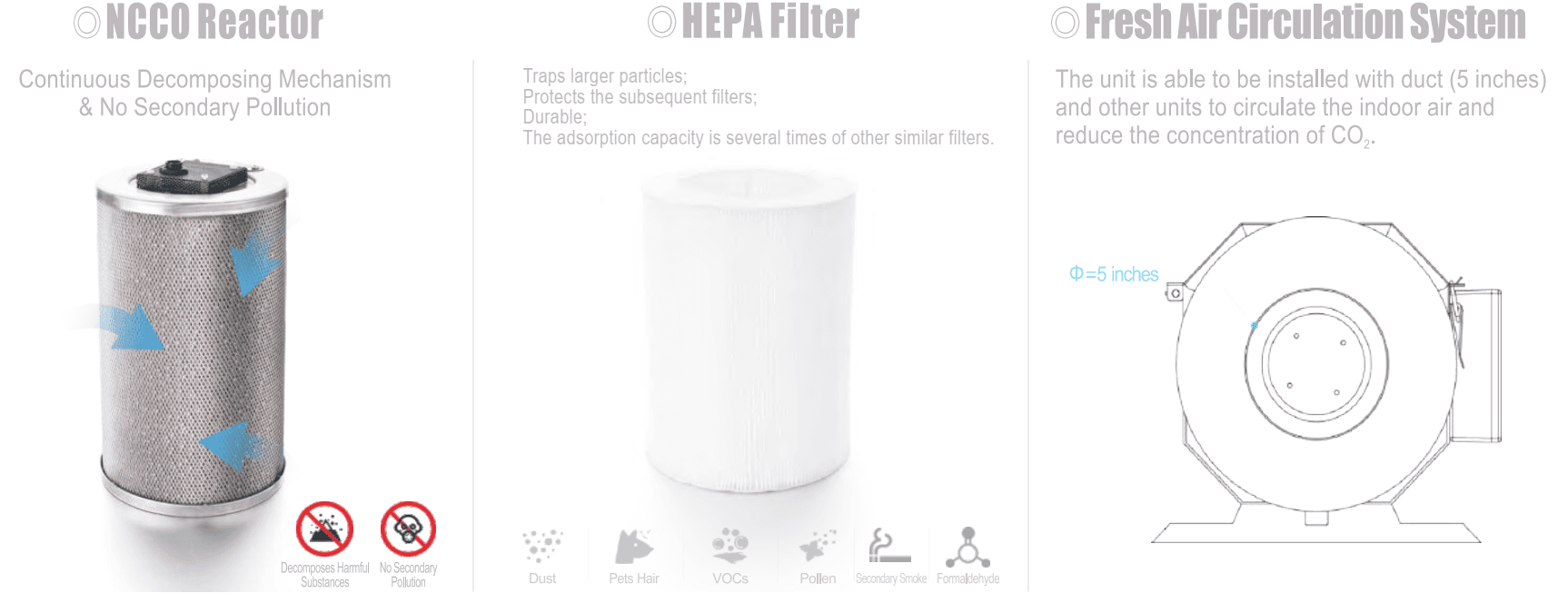

RH-220 Key Features — NCCO Reactor, HEPA Filter, Fresh Air Circulation System
Key Features

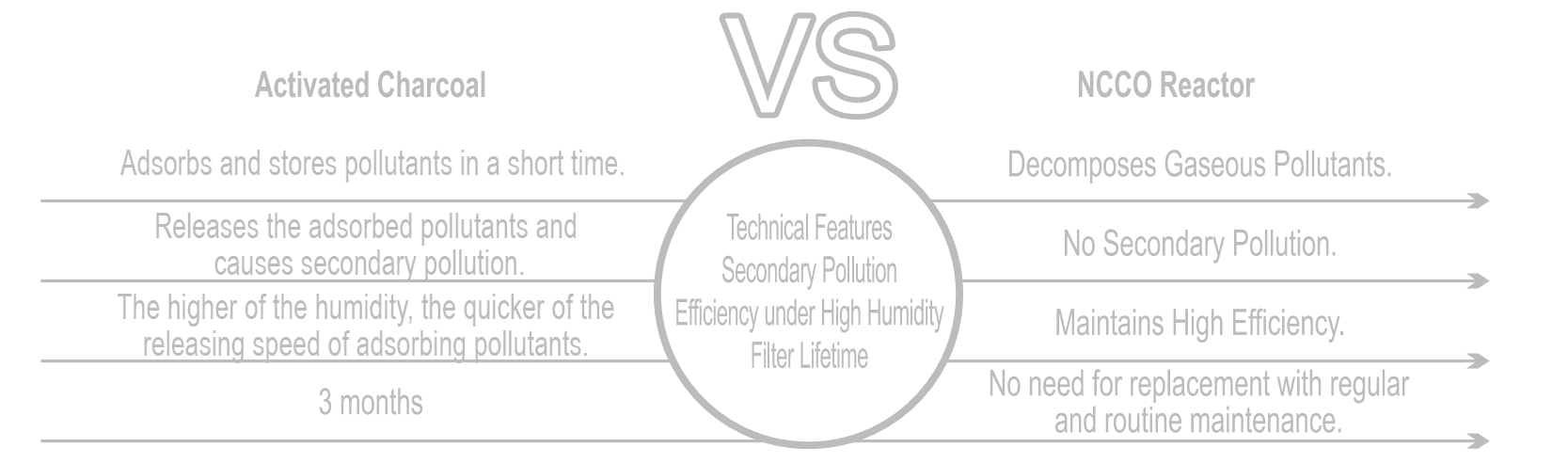

RH-220 NCCO Reactor vs Activated Charcoal — Technology Comparison
Technology Comparison

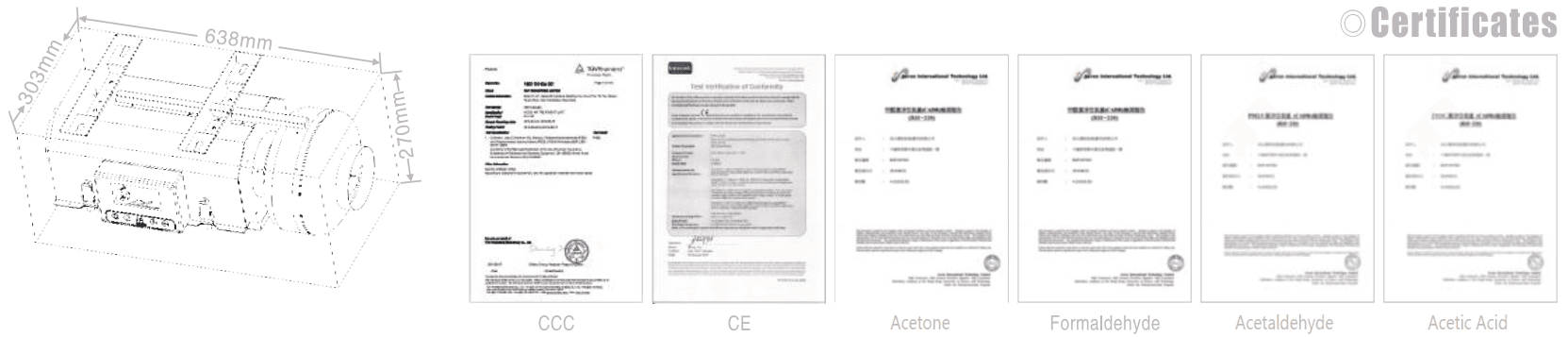

RH-220 Dimensions (638×303×270mm) and Certifications — CCC, CE, Acetone, Formaldehyde, Acetaldehyde, Acetic Acid
Dimensions & Certifications

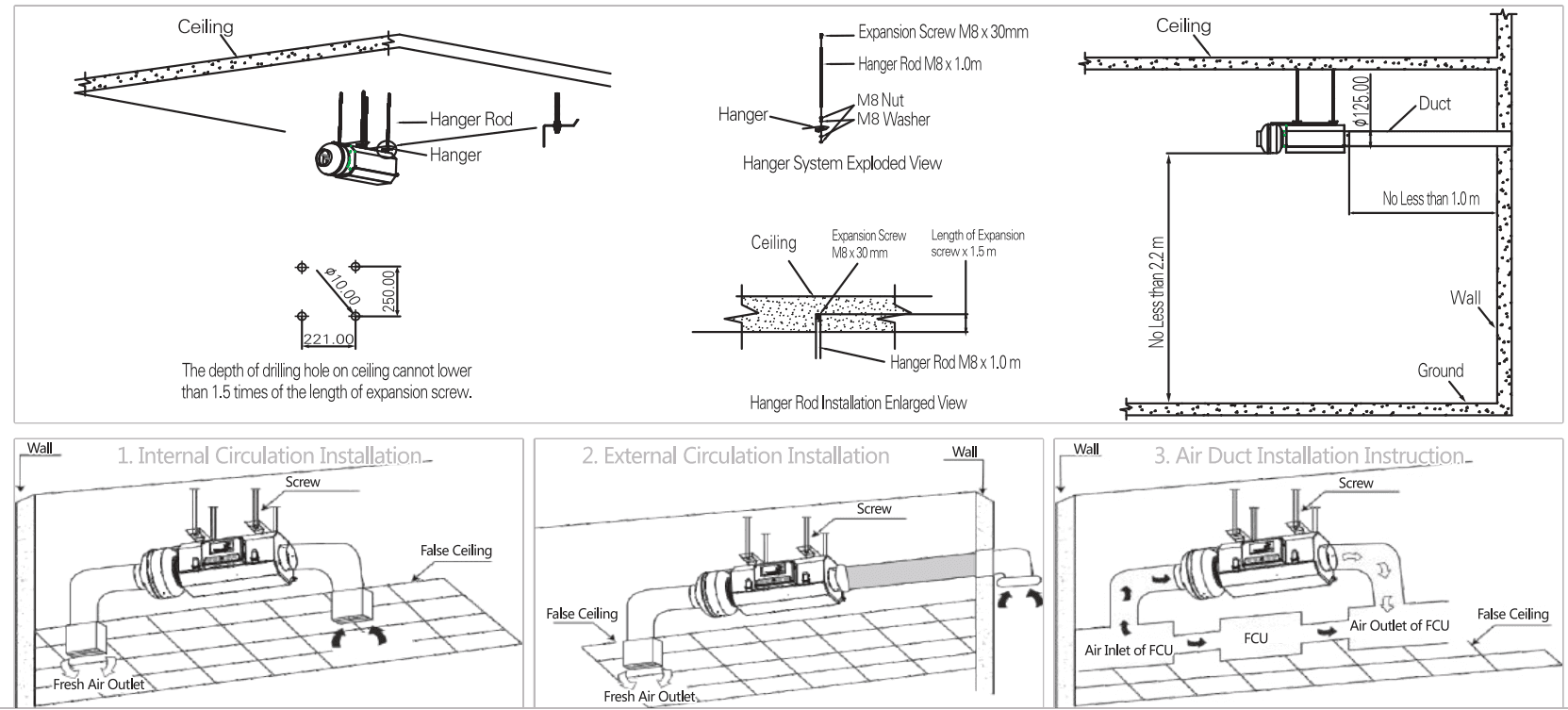

RH-220 Installation Options — Internal Circulation, External Circulation, Air Duct Installation
Installation Options

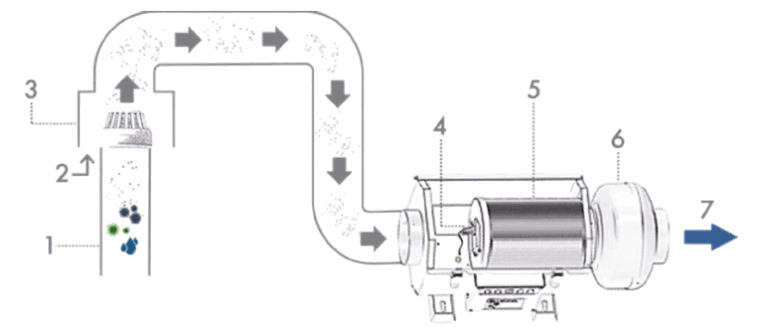

RH-220 Air Treatment Workflow — airflow path through HEPA filter, Active O₂ generator, and NCCO reactor
Treatment Pipeline

Interested in the RH-220?

Our engineering team will assess your facility and recommend the optimal configuration for your space.

Request a QuoteView All Products
